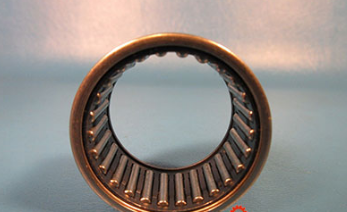

IKO Number: TA 5530Z

Mass (Ref.): 175 g

Assembled inner ring: IRT 5030-1

Fw: 55 mm

D: 67 mm

C: 30 mm

Shaft dia. h6max.: 55 mm

Shaft dia. h6min.: 54.981 mm

Housing bore dia. J7max.: 67.018 mm

Housing bore dia. J7min.: 66.988 mm

Dynamic, C: 62 kN

Static, C0: 124 kN

Allowable rotational speed: 5500 rpm
